| Technical | Specification |
|---|---|

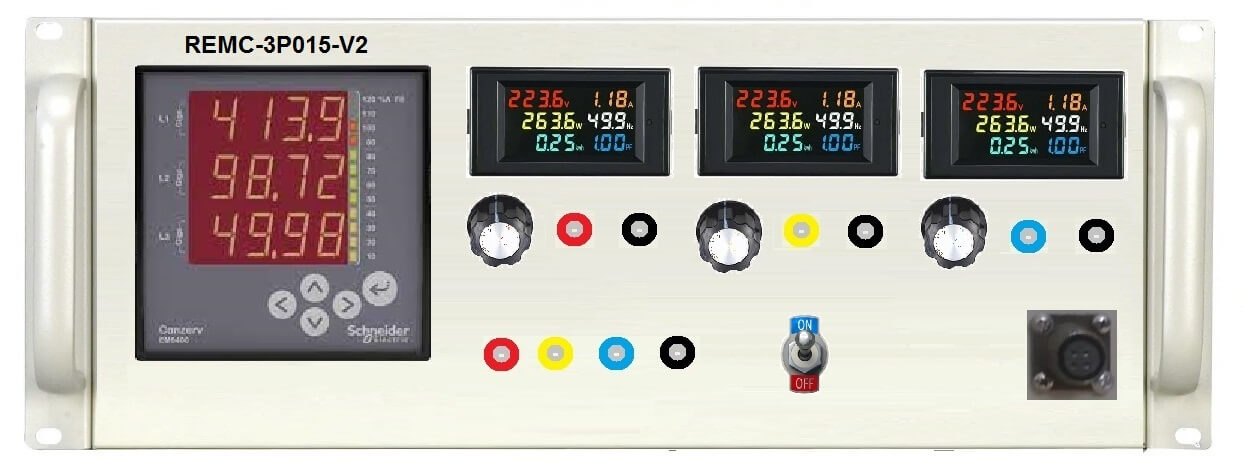

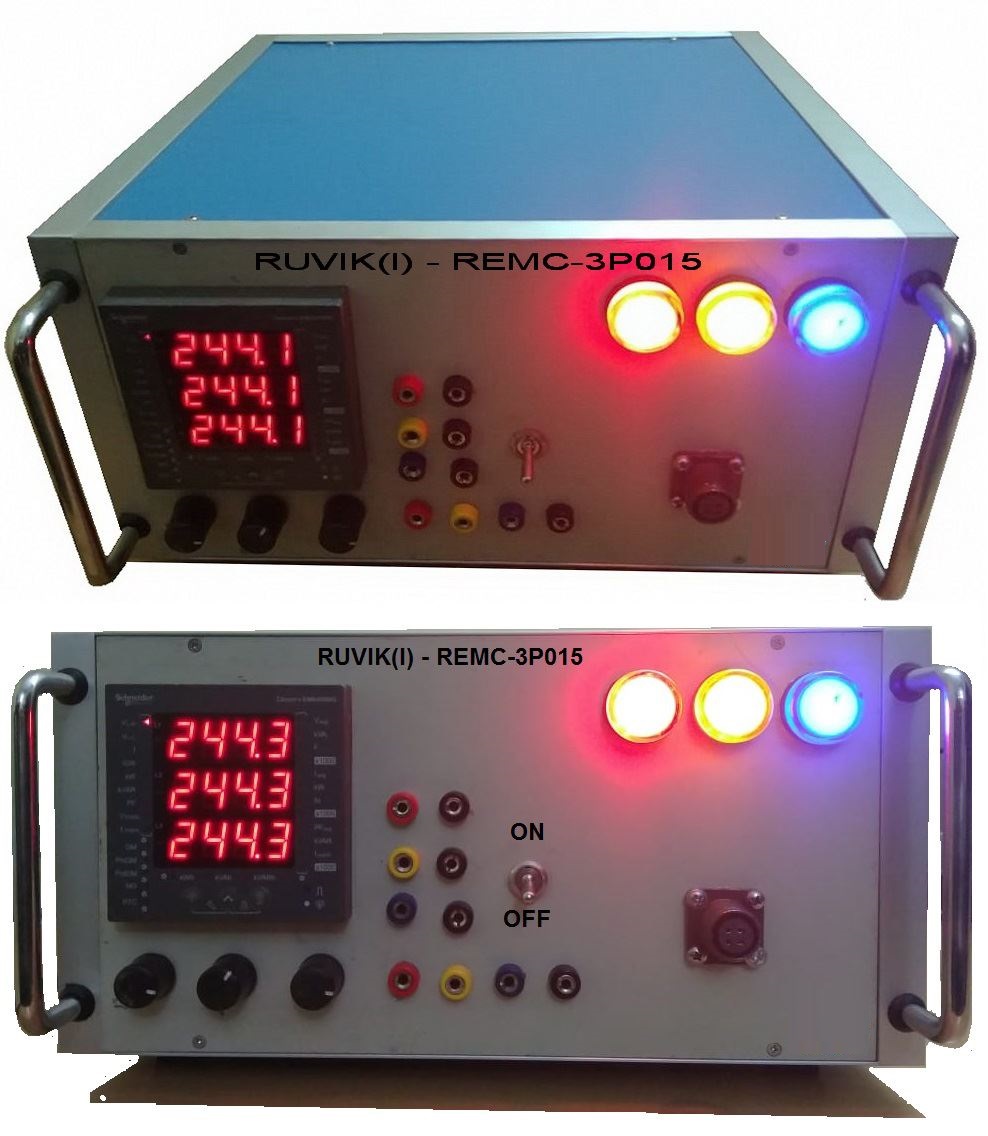

| Model No. | REMC-3P015 |
| Input Power | 230VAC, 50Hz. |
| Output Voltage Ranges | 0 To 300V ( L - N ) or 0 To 520V Phase To Phase. |
| Output Current Ranges | 0 To 6A Per Phase. |
| Mode | 3Phase 4Wires. |
| Output Ports | Vr, Vy, Vb, N & Ir ( Hi, Lo ), Iy ( Hi, LO ), Ib ( Hi, Lo ). |
| Power Factor Range | 0.1 Lag To Unity To 0.1 Lead. |
| Compliance | 20VA At FS on V Ranges , 30VA At FS on A Ranges |
| Frequency | 45 To 60 Hz |
| Timer | With Programmable Timer Counter to keep Output ON for Fix duration. Duration Programmable in minute. |
| Settings | Voltage , Current & Frequency by Potentiometer. Power Factor by Push Button Keys, Timer by Thumb Wheel Switches. |
| Metering | Digital AC Voltmeter , Digital AC Ammeter , Additional Power Analyzer Meter to Indicate PF, W, VA, VAr of each Phase. Also average of all Phases, WHr. Programmable Current Display to accommodate any CT Ratio. |
| Accuracy | 0.15% FS Dgts for Voltage & Current, 0.05% ± 1 Dgts for PF, 0.15% FS for Watt Meter, 0.02% for Time Duration, Whr : 0.15% |
| Sinusoidal Output | THD 1.5%. |
| Protections | Overload & Short Circuit. |
| Note: | All our meter test equipment, energy meter calibrator, portable meter calibrators specifications are subject to change without prior notice. |
